Many measurements are available on the map created within the SurveyTransfer projects. The available measurements are constantly expanding, currently marker placement, length measurement and area measurement are available.
Point-based measurements on the shareable web map

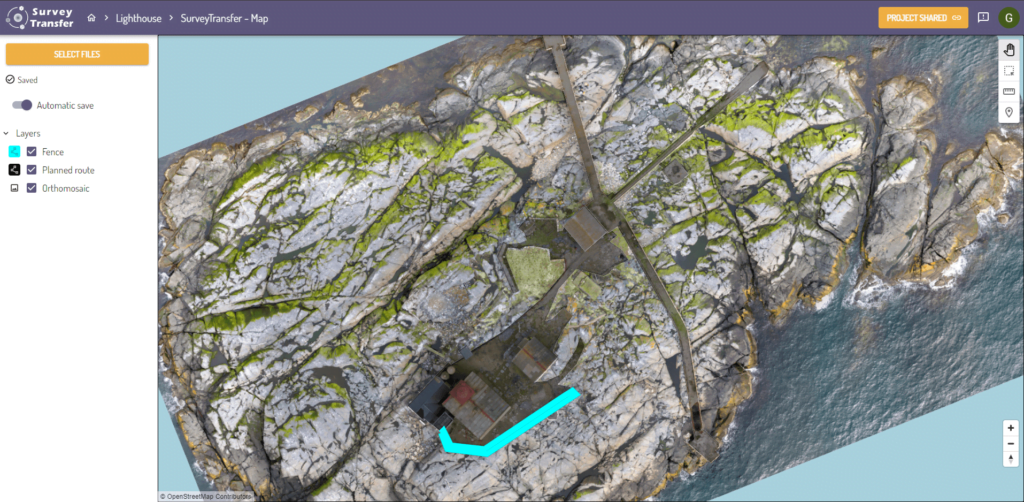

Within SurveyTransfer, various map views can be created within projects. When opening one of these views, it is possible to perform point-based coordinate measurements by placing markers.
This can be done using the Add marker button (
) in the floating menu on the right side of the map.

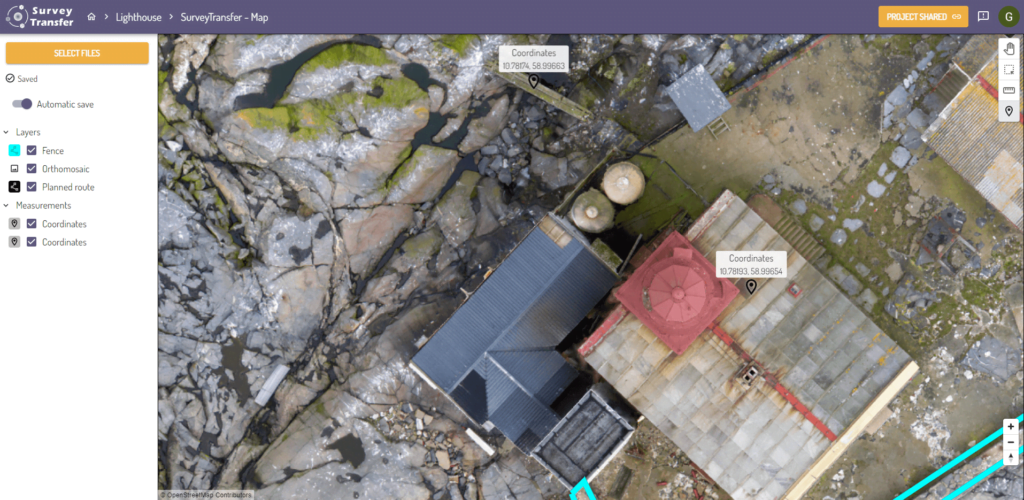

By selecting the Add marker button, you can freely place as many points as you need on the map. When measurement mode is active, your cursor will appear as a crosshair (
) on the map. The name and the coordinate of the marker will be displayed above it. In a map view the coordinate is displayed in WGS84 format. The markers added to the map will appear under a new Measurements category, below the layers.
Distance measurements on the shareable web map
In SurveyTransfer map view, there is an option for distance measurements as well. You can access this feature in the floating menu on the right side of the map. By clicking the Distance measurement button (
), the function is activated, and you can freely measure distances on the map. When the measurement mode is active, your cursor will appear as a crosshair () on the map.
By left-clicking with the mouse, you can start drawing the measurement line. While drawing the line, green markers will appear in the position of the last placed vertex. If you click on the green markers or click with the right mouse button, the measurement line will be closed. While drawing the line, you will continuously see the measured distance value expressed in meters displayed on the map.
Area measurements on the shareable web map
In the map views, you can also measure areas. You can access this function in the floating menu on the right side of the map. By clicking on the Area measurement button (
), the function is activated, and you can freely measure on the map. When the measurement is active, your cursor will appear as a crosshair () on the map.
By left-clicking, you can start drawing the boundary of the area measurement. The area enclosed by the black boundary is depicted with a faint, transparent gray color. While drawing the polygon, green markers will appear in the position of the last placed vertex. If you click on the green markers or click with the right mouse button, the area measurement will be closed. During the drawing of the area measurement, you will continuously see the measured area value expressed in square meters on the map.
Customizing measurements on the map
In the left-side menu, under the Measurements section, you can customize point, line, and area measurements. Customizing measurements work the same way as customizing layers (you can read more about it here). When hovering over a measurement, two new options appear.
- You can set the order of the measurement layers. By clicking on the drag icon (
), and holding down the left mouse button, you can move the measurement layers up and down (for example, you can move a point over an area).
), and holding down the left mouse button, you can move the measurement layers up and down (for example, you can move a point over an area).- Under the More options menu (

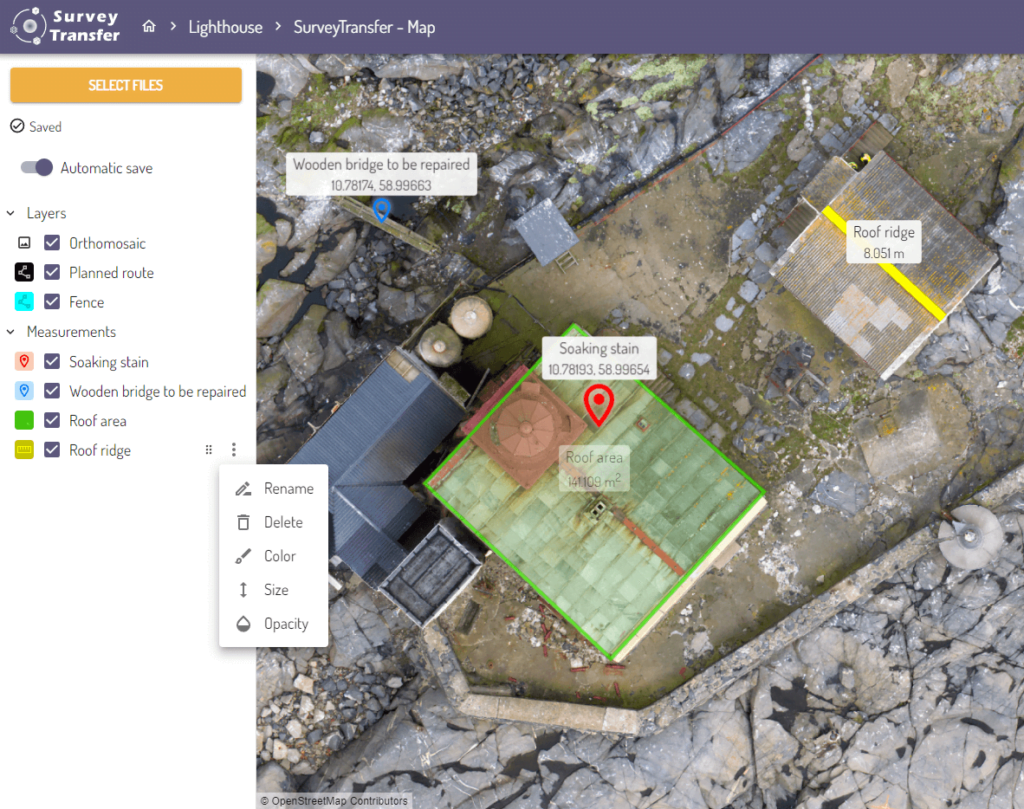

), you have access to additional settings:- You can rename the measurement. This will display the new label on the map, allowing you to leave a message for those with whom you shared the map!
- You can delete the measurement if you no longer need it.
- You can recolor the point, line, and area measurements.
- You can adjust the size of points and the thickness of line measurements.
- You can set the opacity of measurements.
), you have access to additional settings:
